ARX160 – Conversion kit
7.62x39mmLa piattaforma modulare Beretta ARX160 può essere equipaggiata con un kit di conversione che permette al fucile d’assalto di operare utilizzando un munizionamento in calibro 7.62x39mm. Il kit è composto da otturatore, canna e caricatore specifici per il nuovo calibro.
technical info
download specificationstitle
ARX160 – Conversion kit
Caliber
7.62x39mm
Operating principle
Gas operated short stroke piston
Locking system
Locked breech rotating bolt
Barrel length
approx. 406mm / 16in
Barrel thread
1/2" x28
Rifling pitch
240mm / 9.45in
Muzzle cage
Bird Cage
Sights system
Flip-up iron sight
Sight radius
365mm / 14.37in
Lower receiver material
Fiberglass reinforced technopolymer
Upper receiver material
Fiberglass reinforced technopolymer
Accessory rail
MIL-STD-1913
Safeties
Manual safety
Fire selector positions
Three position S-1-F
Reciprocating system
Yes

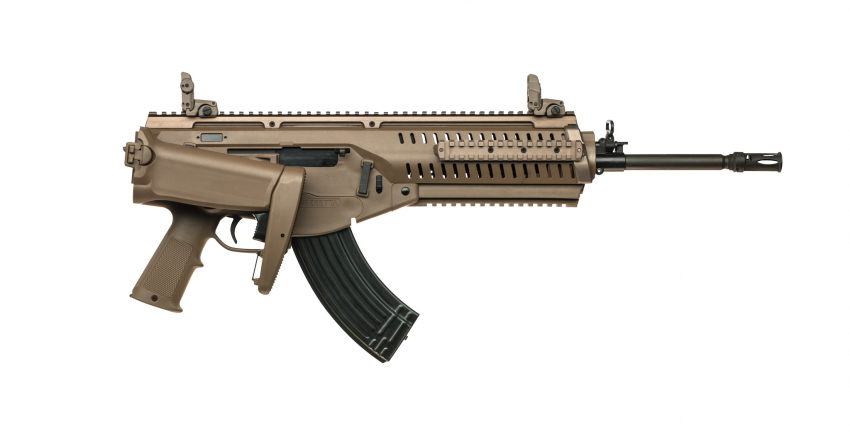

Stock
Foldable, Telescopic (4 positions)
Length min/max
approx. 680-900mm / 26.77-35.43in
Height
approx. 255mm / 10.00in
Width
approx. 80mm / 3.15in
Weight - with empty magazine
approx. 3,6kg / 126.99oz
Magazine capacity
30 rounds
